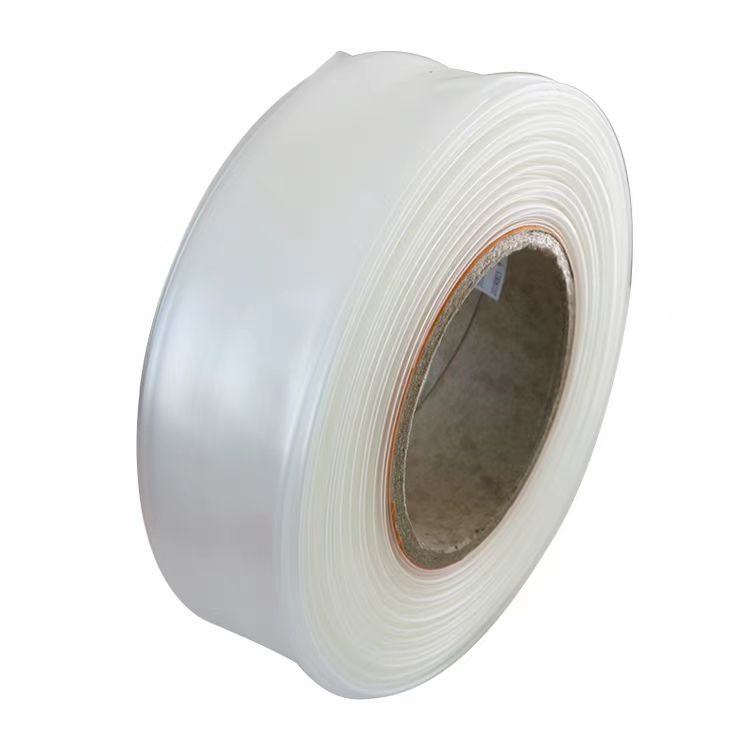

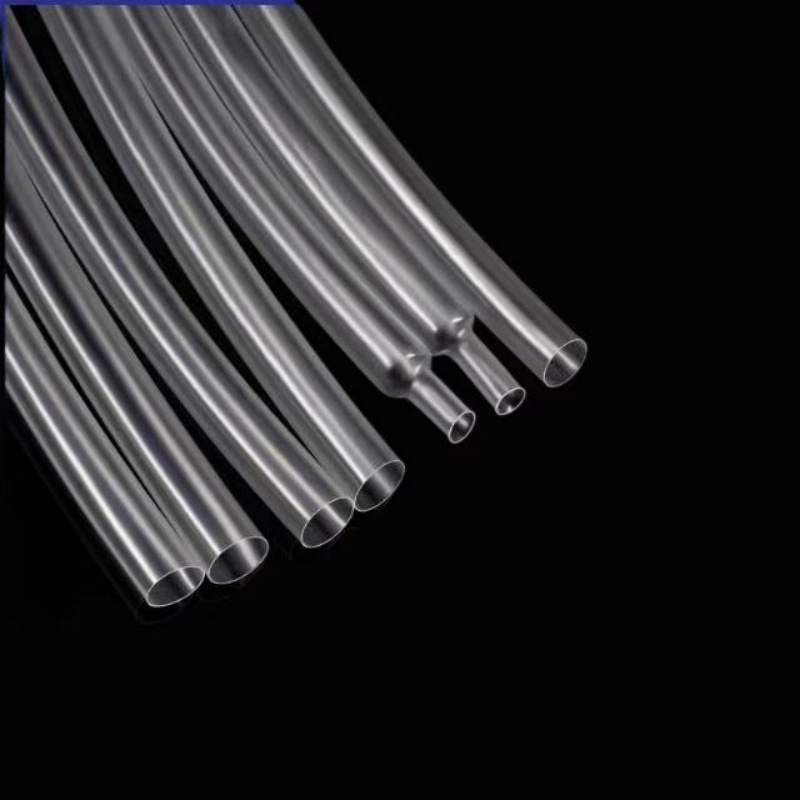

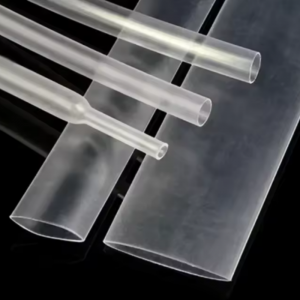

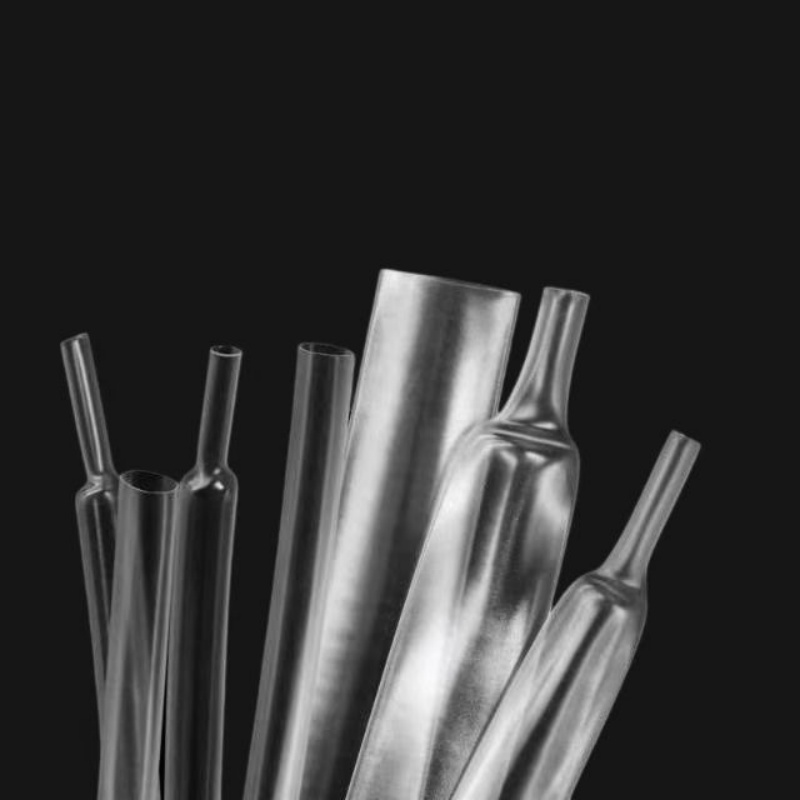

TWRS-125H Thin Wall Clear Heat Shrink Tubing
TWRS-125H(2X)(3X) is a radiation cross-linked polyolefin tubing designed with excellent physicochemical and electrical properties. Typical applications include insulation of electrical connections or wire splices, rust, and corrosion resistance for the soldered joints or connections, mechanical and wiring harness protection, etc.
Structure
Technical Performance
Properties | Typical Data | Test Method |
Tensile strength | ≥10.4MPa | ASTM D 2671 |
Elongation | ≥200% | ASTM D 2671 |
Tensile strength after heat aging | ≥7.3MPa | 158℃×168h |
Elongation after heat aging | ≥100% | 158℃×168h |
Longitudinal change | -5%～+5% | ASTM D 2671 |
Flammability | VW-1 | ASTM D 2671 |
Voltage withstand(Rated voltage 600V) | 2500V,1min, without breakdown | UL 224 |
Heat shock | No cracking, no dripping | UL 224，250℃×4h |
Dielectric strength | ≥15kV/mm | ASTM D 149 |
Volume resistivity | ≥1014Ω.cm | IEC 60093 |
Dimension

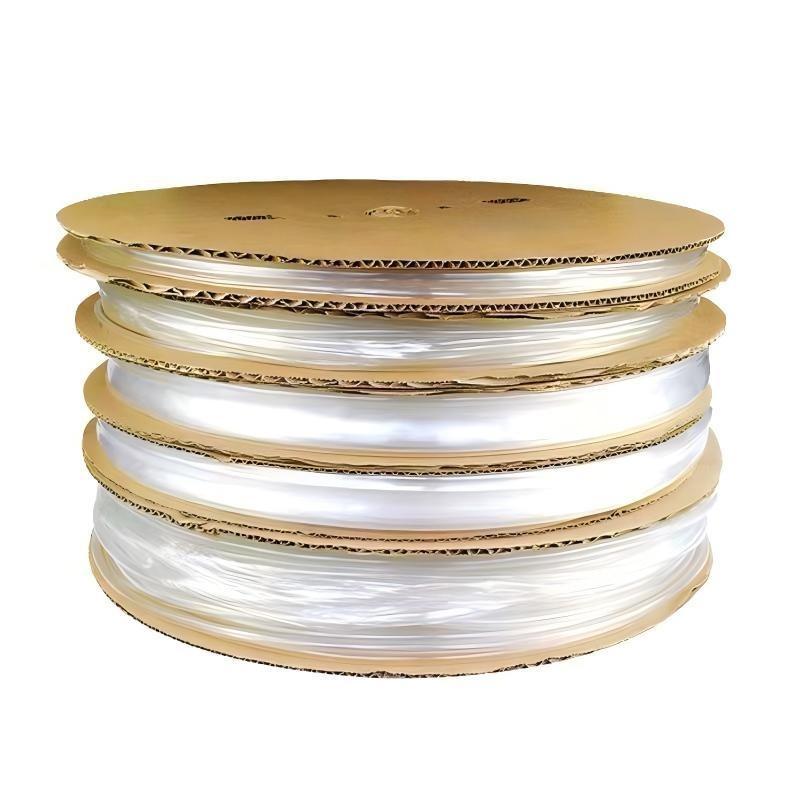

Size(mm) | As supplied D (mm) | After full Recovered(mm) | Standard Package (M/Roll) |
Internal diameter d | Wall thickness w |
φ0.5/0.35 | 0.7±0.2 | ≤0.35 | 0.33±0.10 | 400 |
φ0.8/0.50 | 1.1±0.2 | ≤0.50 | 0.33±0.10 | 400 |
φ1.0/0.65 | 1.5±0.2 | ≤0.65 | 0.36±0.10 | 400 |
φ1.5/0.85 | 2.0±0.2 | ≤0.85 | 0.36±0.10 | 400 |
φ2.0/1.00 | 2.5±0.2 | ≤1.00 | 0.45±0.10 | 400 |
φ2.5/1.30 | 3.0±0.2 | ≤1.30 | 0.45±0.10 | 400 |
φ3.0/1.50 | 3.5±0.2 | ≤1.50 | 0.45±0.10 | 400 |
φ3.5/1.80 | 4.0±0.2 | ≤1.80 | 0.45±0.10 | 400 |
φ4.0/2.00 | 4.5±0.2 | ≤2.00 | 0.45±0.10 | 400 |
φ4.5/2.30 | 5.0±0.2 | ≤2.30 | 0.45±0.10 | 200 |
φ5.0/2.50 | 5.5±0.2 | ≤2.50 | 0.56±0.10 | 200 |
φ5.5/2.75 | 6.0±0.2 | ≤2.75 | 0.56±0.10 | 200 |
φ6.0/3.00 | 6.5±0.2 | ≤3.00 | 0.56±0.10 | 200 |
φ7.0/3.50 | 7.5±0.3 | ≤3.50 | 0.56±0.10 | 100 |
φ8.0/4.00 | 8.5±0.3 | ≤4.00 | 0.56±0.10 | 100 |
φ9.0/4.50 | 9.5±0.3 | ≤4.50 | 0.56±0.10 | 100 |
φ10/5.00 | 10.5±0.3 | ≤5.00 | 0.56±0.10 | 100 |
φ11/5.50 | 11.5±0.3 | ≤5.50 | 0.56±0.10 | 100 |
φ12/6.00 | 12.5±0.3 | ≤6.00 | 0.56±0.10 | 100 |
φ13/6.50 | 13.5±0.3 | ≤6.50 | 0.70±0.10 | 100 |
φ14/7.00 | 14.5±0.3 | ≤7.00 | 0.70±0.10 | 100 |
φ15/7.50 | 15.5±0.4 | ≤7.50 | 0.70±0.10 | 100 |
φ16/8.00 | 16.5±0.4 | ≤8.00 | 0.70±0.10 | 100 |
φ17/8.50 | 17.5±0.4 | ≤8.50 | 0.70±0.10 | 100 |
φ18/9.00 | 19.0±0.5 | ≤9.00 | 0.70±0.10 | 100 |
φ20/10.0 | 22.0±0.5 | ≤10.0 | 0.80±0.15 | 100 |
φ22/11.0 | 24.0±0.5 | ≤11.0 | 0.80±0.15 | 100 |
φ25/12.5 | 26.0±0.5 | ≤12.5 | 0.90±0.15 | 50 |
φ28/14.0 | 29.0±0.5 | ≤14.0 | 0.90±0.15 | 50 |
φ30/15.0 | 31.5±1.0 | ≤15.0 | 1.00±0.15 | 50 |
