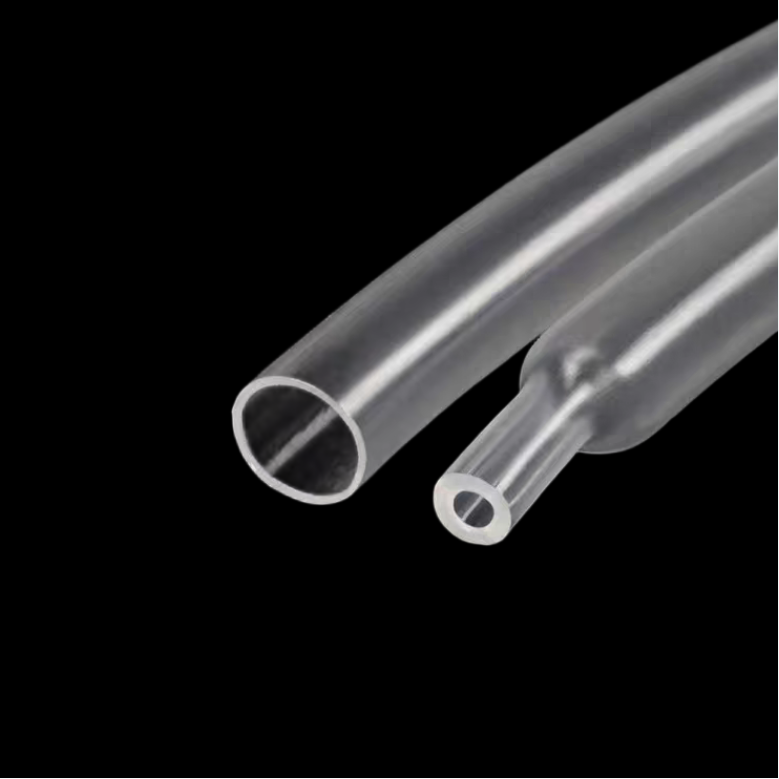

Dual Wall Flame Adhesive Lined Clear Heat Shrink Tubing
DWRS-125G is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive. The inner layer of adhesive, with superior sealing capability, is also a buffer against mechanical strain. Dual wall heat shrink tubing is designed to provide superior sealing against water, corrosive gas, and chemicals.
Structure
Technical Performance
Property | Typical data | Test method/condition |
Tensile strength | ≥12MPa | ASTM D 2671 |
Elongation at break | ≥400% | ASTM D 2671 |
Tensile strength after heat aging | ≥11MPa | 158℃ ×168h |
Elongation after heat aging | ≥350% | 158℃ ×168h |
Longitudinal change | 0~+10% | ASTM D 2671 |
Flammability | Self extinguishing in 30 sec. | AMS-DTL-23053/4 |
Dielectric strength | ≥15kV/mm | IEC 60243 |
Volume resistivity | ≥1014Ω.cm | IEC 60093 |
Technical Performance of Adhesive
Technical Performance of Adhesive
Property | Typical data | Test method/condition |
Softening point | 95±5°C | ASTM E 28 |
Water absorption | <0.5% | ASTM D 570 |
Peel strength(PE) | ≥120N/25mm | ASTM D 1000 |
Peel strength(AI) | ≥80N/25mm | ASTM D 1000 |
Technical Performance of Adhesive
Dimension
Size(mm) | As supplied D(mm) | After full recovery (mm) | Standard Package |
Inner diameter d | Wall thickness w1 | Thickness of adhesive layer w2 | (M/Roll or M/PCS) |
Φ3.2 | ≥3.0 | ≤1.00 | ≥1.00 | 0.50 | 200 |
Φ4.8 | ≥4.8 | ≤1.50 | ≥1.00 | 0.50 | 100 |
Φ6.4 | ≥6.0 | ≤2.00 | ≥1.00 | 0.50 | 100 |
Φ7.9 | ≥7.9 | ≤2.70 | ≥1.30 | 0.50 | 100 |
Φ9.5 | ≥9.0 | ≤3.00 | ≥1.40 | 0.60 | 50 |
Φ12.7 | ≥12.0 | ≤4.00 | ≥1.60 | 0.80 | 25 |
Φ15.0 | ≥15.0 | ≤5.00 | ≥1.80 | 0.80 | 25 |
Φ19.1 | ≥19.0 | ≤6.00 | ≥2.10 | 0.80 | 25 |
Φ25.4 | ≥25.4 | ≤8.00 | ≥2.40 | 1.00 | 25 |
Φ30.0 | ≥30.0 | ≤10.0 | ≥2.40 | 1.00 | 25 |
Φ39.0 | ≥39.0 | ≤13.0 | ≥2.40 | 1.00 | 1.2 |
Φ50.0 | ≥50.0 | ≤19.0 | ≥2.40 | 1.00 | 1.2 |
Size(mm) | As supplied D(mm) | After full recovery (mm) | Standard Package |
Inner diameter d | Wall thickness w1 | Thickness of adhesive layer w2 | (M/Roll or M/PCS) |
Φ4.0 | ≥4.0 | ≤1.00 | ≥1.00 | 0.50 | 200 |
Φ6.0 | ≥6.0 | ≤1.50 | ≥1.00 | 0.50 | 100 |
Φ8.0 | ≥8.0 | ≤2.00 | ≥1.00 | 0.50 | 50 |
Φ12.0 | ≥12.0 | ≤3.00 | ≥1.40 | 0.60 | 25 |
Φ16.0 | ≥16.0 | ≤4.00 | ≥1.60 | 0.80 | 25 |
Φ18.0 | ≥18.0 | ≤4.50 | ≥1.60 | 0.80 | 25 |
Φ20.0 | ≥19.0 | ≤5.00 | ≥1.80 | 0.80 | 25 |
Φ24.0 | ≥24.0 | ≤6.00 | ≥2.10 | 0.80 | 25 |
Φ32.0 | ≥32.0 | ≤8.00 | ≥2.40 | 1.00 | 1.22 |
Φ40.0 | ≥40.0 | ≤10.0 | ≥2.40 | 1.00 | 1.22 |
Φ52.0 | ≥52.0 | ≤13.0 | ≥2.40 | 1.00 | 1.22 |
Technical Performance of Adhesive
